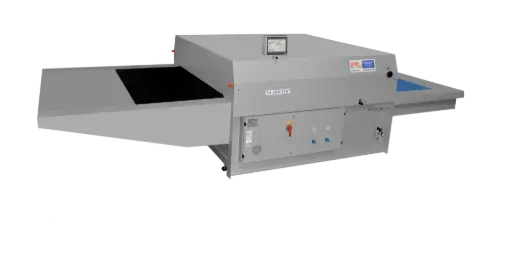

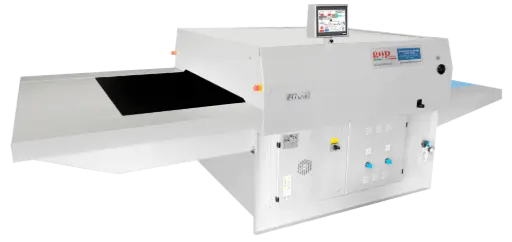

Continuous heat-sealing machine with a compact design for heat-sealing large and small parts. The machine is designed for simple and sandwich heat-sealing.

INPUT STATION
The heat-sealing machine has a working area of ​​140 cm², allowing multiple operators to load the parts to be heat-sealed.

It is equipped with a work surface and a conveyor belt that easily receives the parts to be introduced into the machine.

CONVEYOR SYSTEM
It consists of a lower conveyor belt and an upper cover belt, made of fiberglass with antistatic treatment, coated with Teflon and without joints to avoid marks.

Compensating rollers guide the belt, preventing the formation of folds and undulations. A second tension roller maintains constant tension; the smooth surface obtained in this way increases the quality of the heat-sealing.

High-temperature bearings that require no maintenance.

INTEGRATED CONTACT HEATING SYSTEM
The 1450 mm long upper and lower heating surfaces are composed of a series of 11 LAMINATED profiles that form curved panels.

Each profile has an individual connection.

This modular construction ensures extremely precise temperature control.

The heating zones are equipped with independent control circuits regulated by electronic thermostats, which simplifies the determination of the correct working settings for each type of fabric and heat-sealable material.

The precision of this system allows the use of tolerances that guarantee the best performance and ensure the best adhesion with all materials.

The resistance support ensures the best material support for the resistance.

10-INCH ADJUSTABLE CENTRALIZED CONTROL PANEL

Mounted above the loading station, it signals the following functions: temperature through 2 high-precision thermostats that control the values ​​with strict tolerances, showing the set and actual temperature values. The conveyor belt speed corresponding to the heat-bonding time is set via the electronic speed regulator.

Pressure settings are highlighted by a special display.

It also contains other control services necessary for correct operation, such as self-diagnosis, function control, work program storage (Touch), and error reporting.

DOUBLE PRESSURE SYSTEM
Also available as an option is the DP double pressure system, controlled by independent regulators, which allows cashmere to be bonded to shirt collars, consisting of two separately controlled rollers with specially designed hardness.

COOLING STATION
Allows parts that need to be unloaded manually or automatically to cool down to avoid leaving marks or fingerprints. It is equipped with a special cooling plate that allows parts to cool down so that manual unloading does not leave fingerprints on delicate fabrics.

CLEANING
The machine is equipped with continuous manual top and bottom cleaning using a flannel cloth and a removable cover.

Teflon graphite scraper bars at the outlet.

ENERGY SAVINGS
The consumption of machines with the new insulation system and the ECO heating system
with solid-state relays and “smart” thermostats drops to unexpected levels, electricity savings are 52%, and CO2 savings become considerable.

Prensa de termocolagem com Tapete de 0,75 mts rotativo, de baixo consumo
energético , Largura de trabalho 750/mm, duas zonas de aquecimento uma
acima do tapete e a outra abaixo do tapete, velocidade de trabalho 0,9 a 7,1
mt/min., Tempo de adesão ajustável 7/78 sec, com 4 zonas de limpeza dos
tapetes, Potência instalada 9 kw, Consumo real H. 6 Kw, 380v-3fases, com
maxima pressão de 6kg/cm3 e uma maxima temperatura de 200graus C, ecrã
touch para programação com com possibilidade de até 24 programas standart,
tapete de descarga de saida externo á maquina, diagnostico automatico e lista
de erros, control de pressão regulavel por touch screene com certificado CE-
Atendendo ao local onde vai ser instalada ( monta cargas 450kg, com uma
largura de 1,20 m e 0,95m de profundidade) o equipamento deverá permitir a
sua montagem no local.

Prensa de termocolagem com tapete de 1m rotativo, de baixo consumo
energético, Largura de trabalho 1000/mm, duas zonas de aquecimento uma
acima do tapete e a outra abaixo do tapete, velocidade de trabalho 0,9 a 7,1
mt/min., Tempo de adesão ajustável 7/78 sec, com 4 zonas de limpeza dos
tapetes, Potência instalada 10,2 kw, Consumo real H. 6,5 Kw, 380v-3fases, com
maxima pressão de 6kg/cm3 e uma maxima temperatura de 200graus C, ecrã
touch para programação com com possibilidade de até 24 programas standart,
tapete de descarga de saida externo á maquina diagnostico automatico e lista de
erros, control de pressão regulavel por touch screen, e com certificado CE
